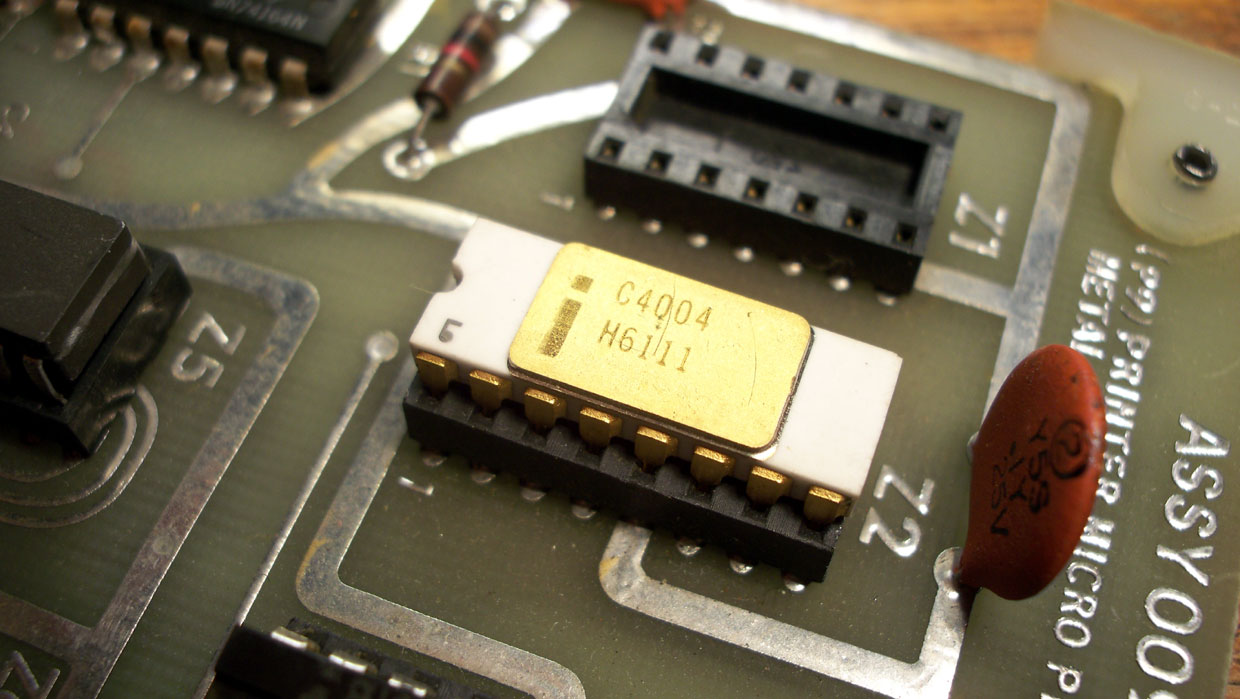

Intel C4004 White on Original Board

The First Microprocessor made. Intel made the earlier C4004's with "Grey Traces". Only a handful exist in the world today.

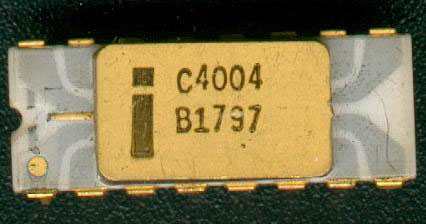

Intel C4004 White

The First Microprocessor made, by Intel Corp.

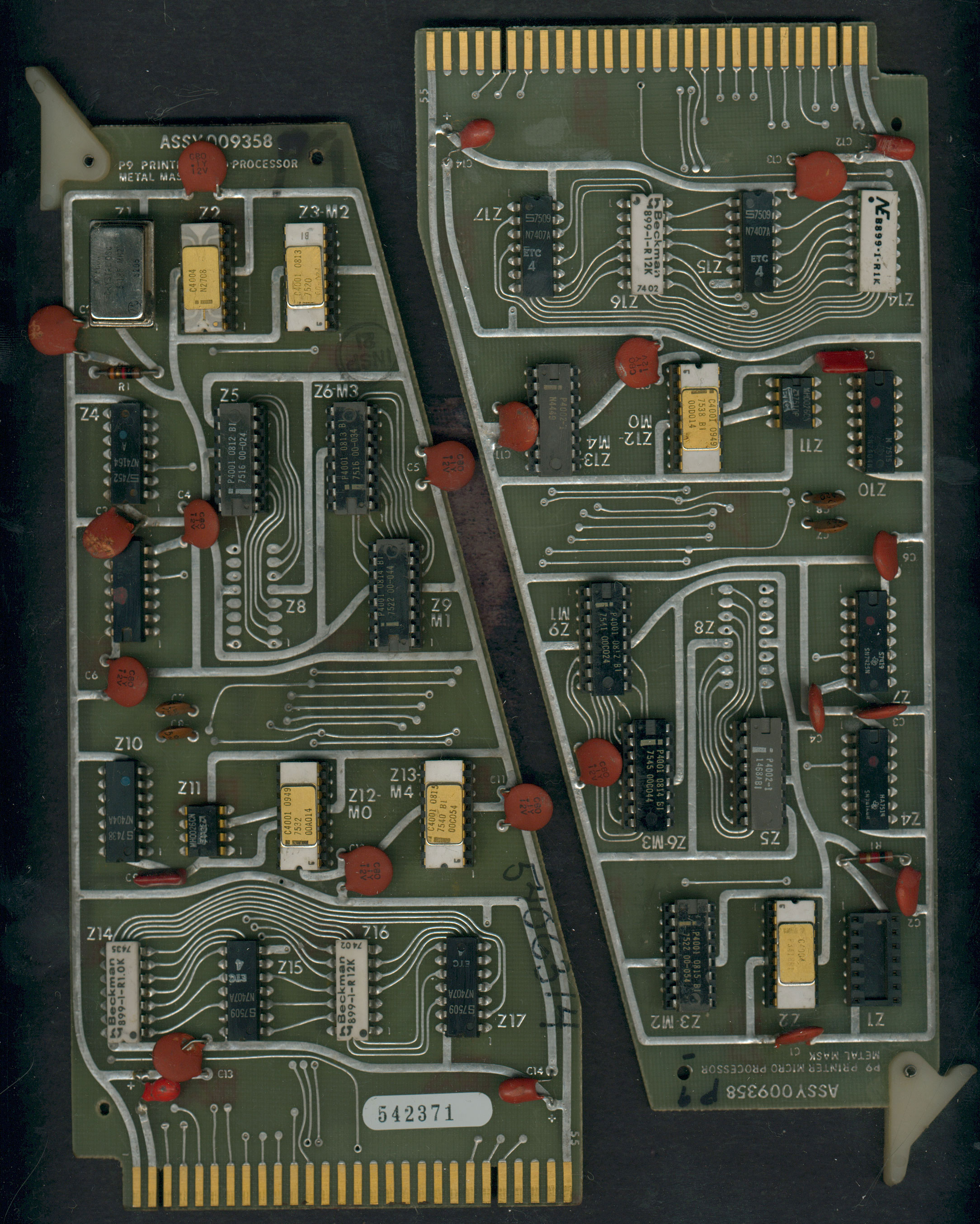

Intel C4004 with Grey Traces and Intel C4004 White On Original Boards

The First Microprocessor made. Intel made the earlier C4004's with "Grey Traces". Only a handful exist in the world today.











Intel C4004 with Grey Traces

The First Microprocessor made. Intel made the earlier C4004's with "Grey Traces". Only a handful exist in the world today.

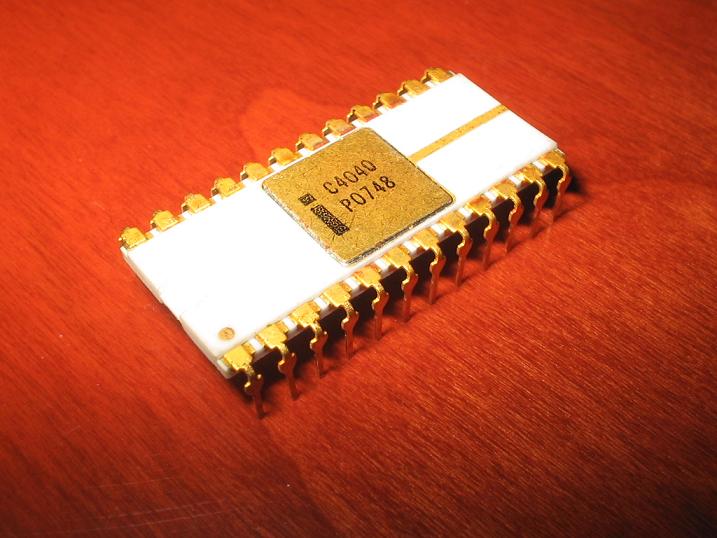

Intel C4040, with Gold Dot corner

Intel's 4 bit microprocessor- check under "Complete Things", you can find the C4040 in such machines as the UPP-102/103.









Intel M8008 with Traces (Date code 7502)

Intel's 8 bit, military microprocessor.









Intel C8008-1

Intel's 8 bit microprocessor.

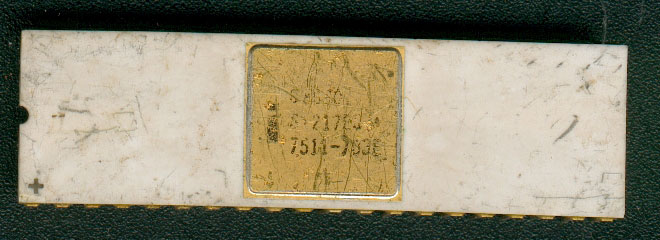

Intel C8080

Intel's 8 bit microprocessor- with no suffix.

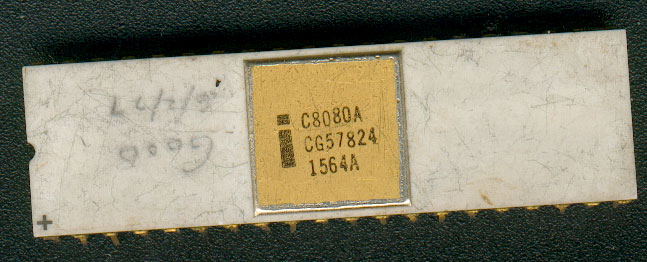

Intel C8080A

Intel's 8 bit microprocessor- sprung in the use of Personal Computers such as the IMSAI, Altair 8080, Intellec machines and others.







Intel C8080A-2

Intel's 8 bit microprocessor- with a "-2" suffix.







Intel C8080B

Intel's 8 bit microprocessor- with the B suffix.

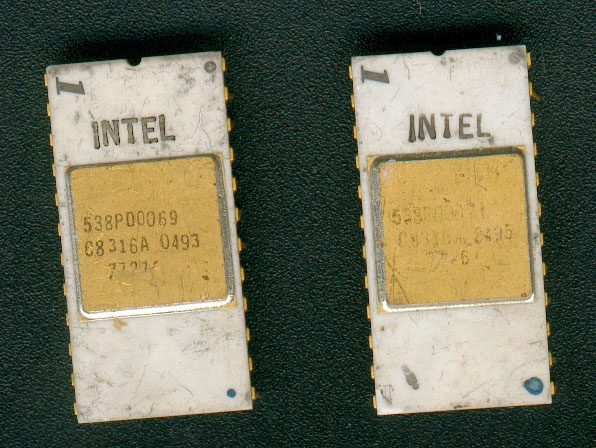

Intel C8316 (USA left/Malaysia right)

Intel's C8316 microchip.

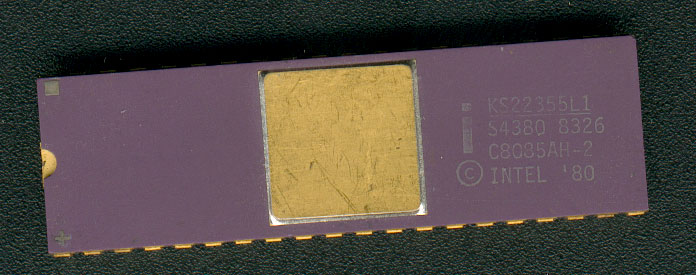

Intel C8085AH-2

Intel's C8085 Microprocessor.







Intel C8085A

The Intel C8085 Microprocessor.

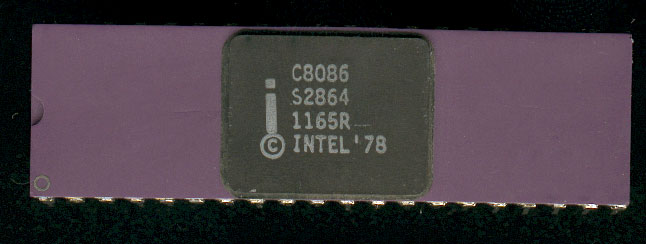

Intel C8086

   The Intel C8086 Microprocessor. Two images are shown because they

are the only two S-Specs I've ever seen for this CPU.









Intel 3301A with Grey Traces

Intel Intel 3301A RAM chip.

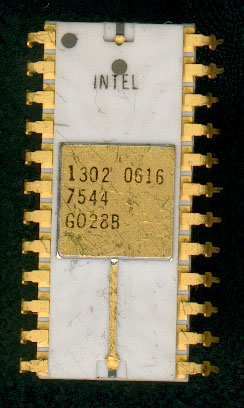

Intel 1302

Intel's 1302 chip with the INTEL logo.

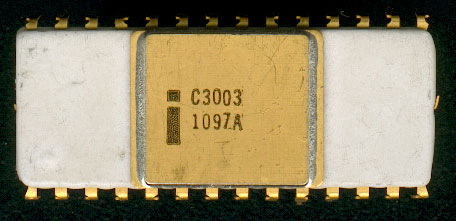

Intel C3003

Intel C3003 Shift Register Chip.







Intel C4001

Intel C4001 4 bit support Chip.







Intel C1101A with Grey Traces

Intel C1101A Memory Chip.









Intel C1402A

Intel C1402A Memory Chip.

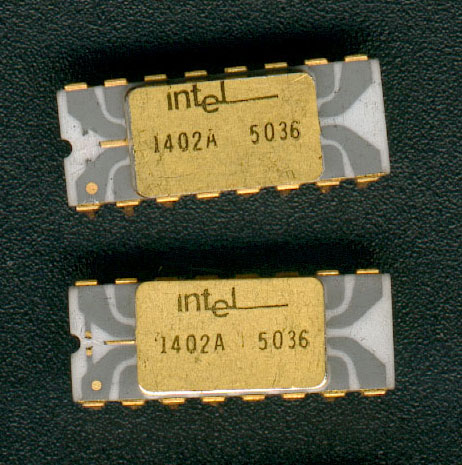

Intel C1402A with Grey Traces -Possibly Engineering Samples

Intel C1402A Memory Chip, with the full "Intel" logo. Believed to be an Engineering Sample. Only ones to exist here on RareCPUs.com.













Intel C2102

Intel C2102 Memory Chip.







Intel 1449

Intel 1449 Memory Chip. This is originally a C2102, but restamped for Military use.







Intel 1702A Customer Sample

Intel 1702A B Package EPROM/ marked as a Customer Sample; "CS".

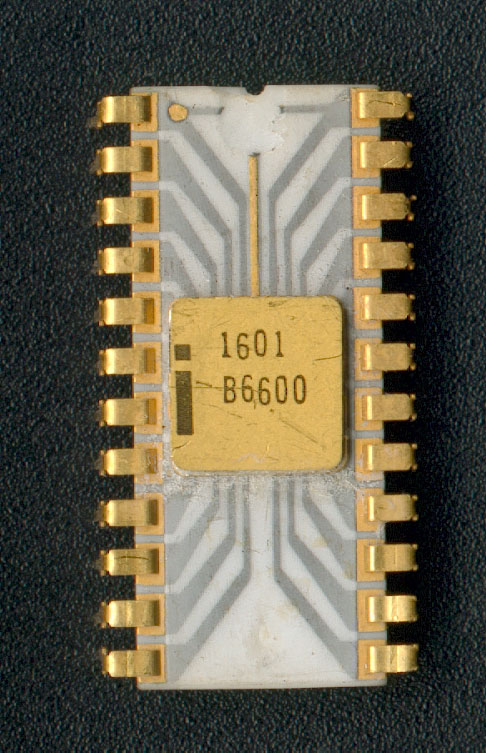

Intel 1601 with Grey Traces

Intel's 1601 PROM.

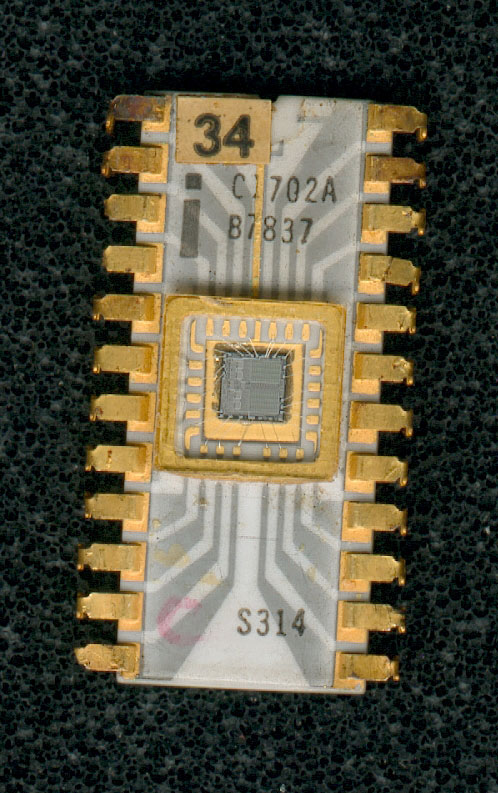

Intel C1702A with Grey Traces

Intel C1702A EPROM.
